Product Information
Rust, peeling paint, or dripping fluids affecting your scrap bins? Normal painted models are easily corroded from wet machining waste, organic scrap, or fluids. This then damages valuable fork pockets and safety latches.

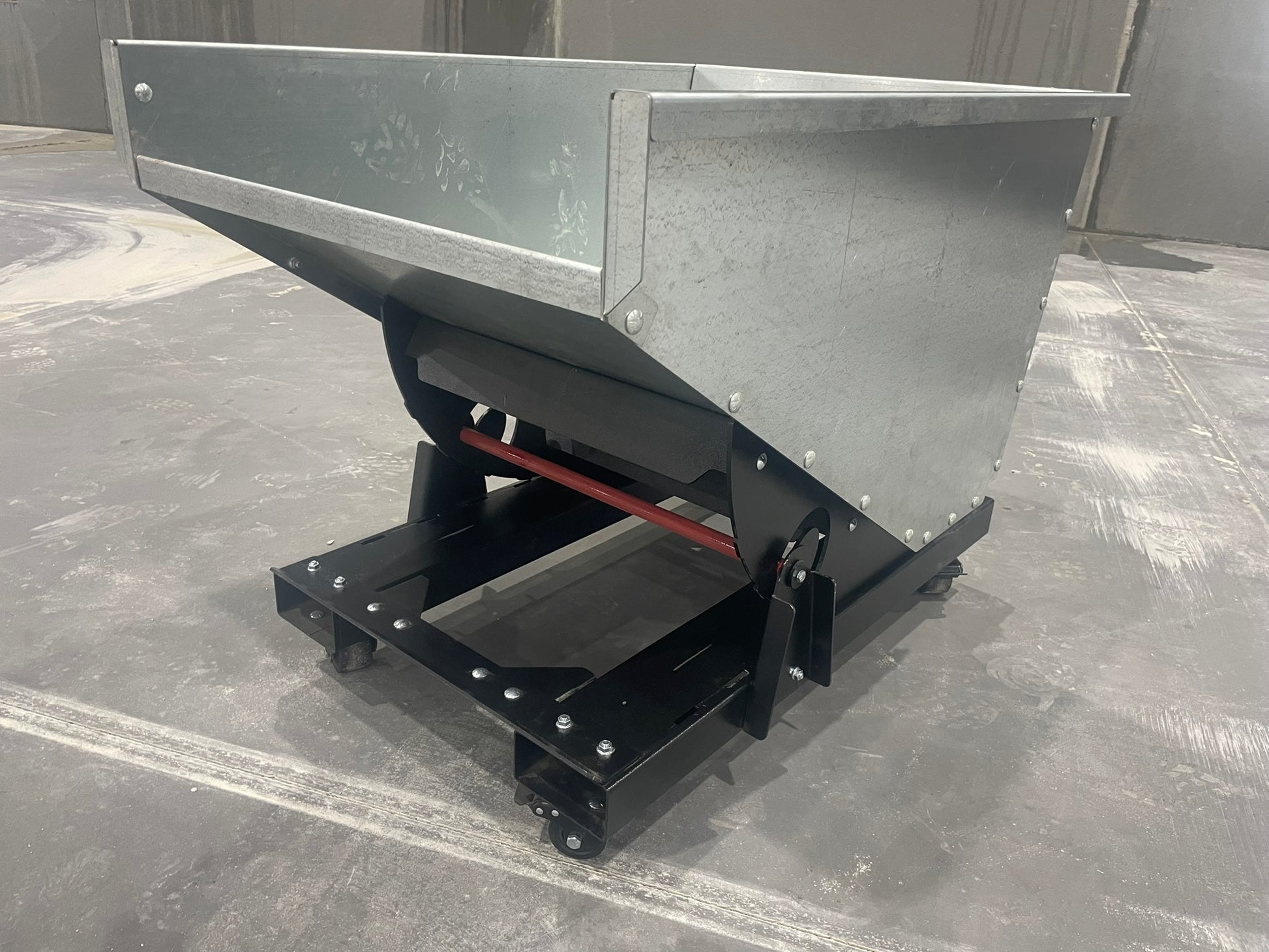

The galvanized self-dumping hopper gives you a long-lasting, rust-proof disposal solution. With a hot-dip zinc cover for lasting corrosion resistance, galvanized steel industrial containers provide enhanced safety to lift truck operators and increased overall floor production.
See our galvanized dump hopper specs and identify a galvanized steel hopper configuration that meets your needs.
Key Features
-
Sacrificial Zinc Protection: When abrasive, sharp scrap causes accidental scratches to the galvanized coating on your steel hopper, the adjoining hot-dip coating serves as a barrier to heal the wound and prevent rust from forming.
-
Automated Fork Dump Mechanism: Your operator can automatically dump the contents from inside the forklift cab. By pushing the front bumper plate against a disposal bin, the unit tip will unlock, spill the contents, and auto-lock back up right.
-
Heavy Duty Fork Pockets: Welded steel channels allow for a safe fitting of standard forklift forks; we over-weld all pockets so the structures do not bend during transit.
-
Double Safety Locks: Mechanical latch prevents self-dumping hopper from tipping on your shop floor, and a chain safely links your galvanized hopper to your forklift mast.
-
Leak-Proof Welded Joints: Welded seams prevent wet sludge, liquid waste, or oily coolant from being leaked onto your shop floor.
Technical Specifications
-
Hot-Dip Galvanized Steel: Each of our heavy-gage steel bodies is dropped into a bath of liquid zinc, which forms an alloy coating that can heal and rust-proof at indoor CNC chip recovery or outdoor yard facilities.
-
Four Volume Sizes: Available in your choice of 1/4, 1/2, 1, and 2 cubic yard capacity steel self-dumping hoppers that are tailored to your plant's day-to-day scrap generation.
-
2,000 to 6,000-Pound Capacity: You can transport huge loads reliably in these industrial containers. Some models accommodate heavy items weighing up to 6,000 lbs – depending on the container dimensions.
-
Double-Gauge Steel: We start all main steel bodies with 10-gauge. The base of the bucket is built with 7 gauge to ensure it doesn't collapse or start bowing out with heavy loads.
-
Universal Fork Pockets: Steel 2.5" x 7.5" integrated on a model that fits a standard industrial forklift means that it can be loaded and dumped by just one operator, safely.
-
Caster Wheel Options: To convert your hopper into a highly mobile self-dumping hopper for narrow workspaces, add on a 6-inch polyurethane wheel or one 6-inch solid steel wheel.
-
Dual-Action Release: The bins are tipped safely by an operator from inside the forklift driver's cab. The bin has an auto bumper plate for tipping or a manually operated pull cord.
About Material & Finish
Immerse our bare steel hoppers in 840°F molten zinc. While submersed in the zinc, a metallurgical bond is formed. During this process, the zinc is bonded with the iron molecules within the steel hopper. When scraped with a utensil that would remove common coatings, this galvanized steel hopper still has the coating completely intact, thereby preventing Rust.
The zinc barrier will corrode at a rate of less than 1 micron a year, meaning a galvanized industrial container will last you between 20-50 years! This is why our galvanized self-dumping hopper is excellent for wet CNC chip containment, chemical plants, and outdoor scrap yards.
